CHESTER Clime IAQ

Monitor indoor air quality continuously and document ventilation performance: CO2, temperature, humidity, pressure, and light in one device.

Book meeting

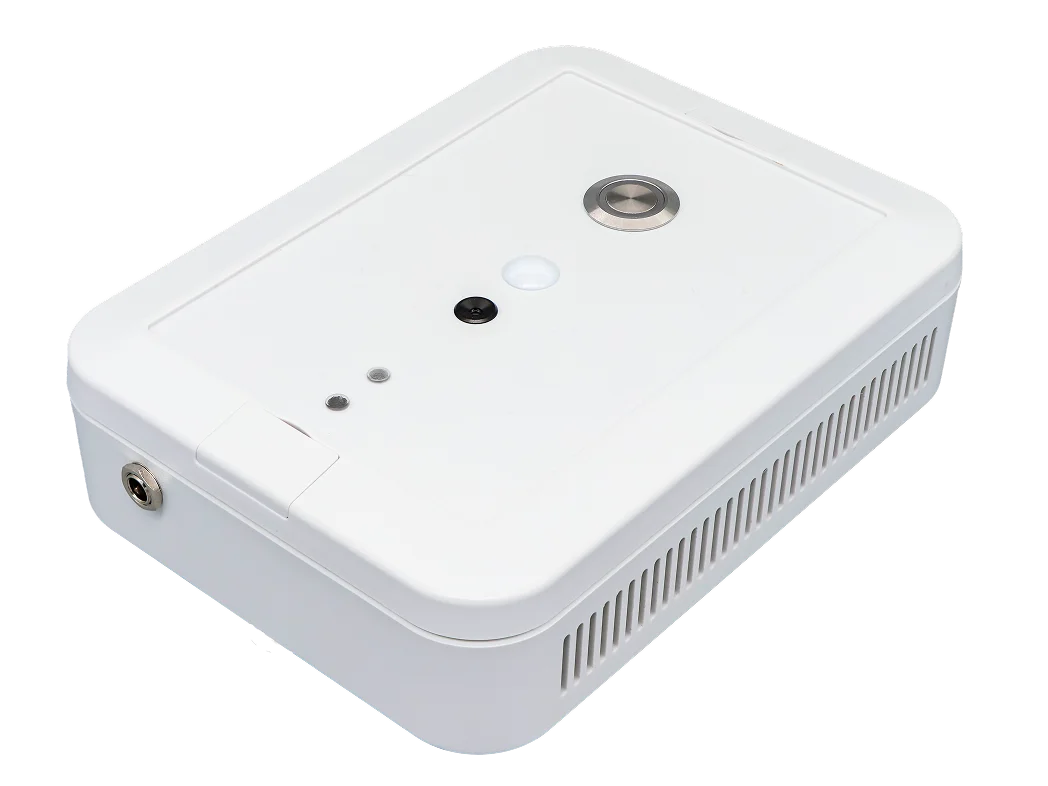

CHESTER Clime IAQ
0–10 000 ppm
CO2
± 50 ppm
Accuracy
0.01–83 000 lux
Lux range
5 m / 98°
PIR
CHESTER Clime IAQ

How it works

What CHESTER Clime IAQ does

Environmental measurements
Monitoring of temperature, humidity, CO2 concentration, and light intensity
Buzzer and LED button
Pressing the LED button sounds the buzzer and sends data immediately
Configurable alarms
Set an alarm for a specific temperature or CO2 level
Reliable power supply
Powered by an external power supply from 6 to 28 VDC

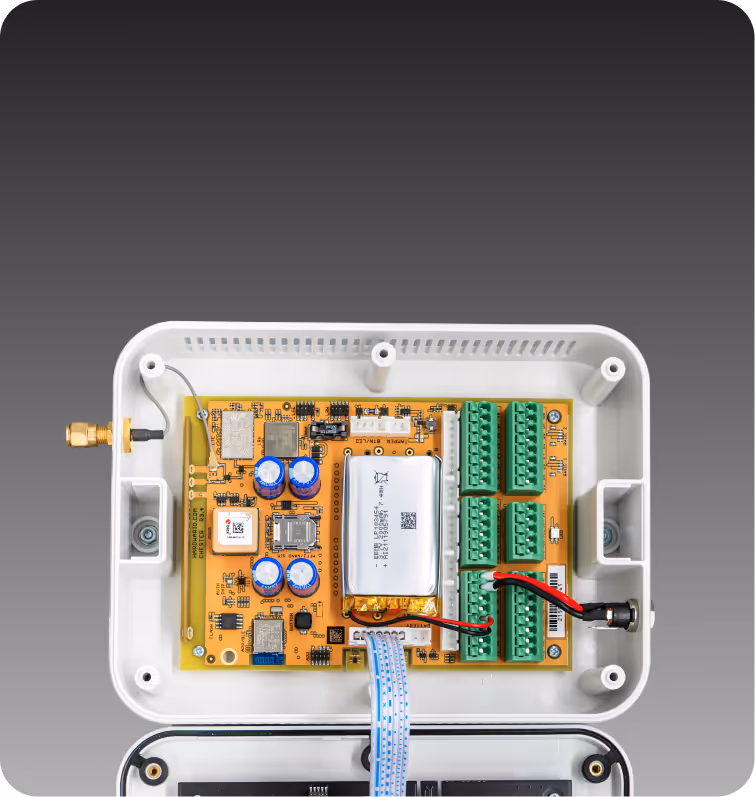

Backup battery inside
If external power fails, the backup Li-pol battery keeps the device running for up to 1 year

Applications

What it is used for

  • Office & workplace health
  • Schools & public buildings
  • Construction & building commissioning
  • Warehouse & storage facilities

Specifications

Technical specifications

Thermometer measurement range
-30 to +70 °C
Thermometer accuracy
± 0.2 °C (from 0 to 65 °C)
Hygrometer measurement range
0 to 100%
Hygrometer accuracy
± 2% (from 10 to 90%)
CO2 sensor measurement range
0 to 10 000 ppm
CO2 sensor accuracy
± 50 ppm CO2 ± 3%
Barometer pressure range
20 kPa to 110 kPa
Barometer accuracy
± 0.4 kPa
Barometer altitude range
-698 to 11,775 m
Luxmeter measurement range
0.01 to 83 000 lux
Luxmeter accuracy
± 0.2%
PIR sensor detection range
5 m
PIR sensor detection angle
98° (horizontally and vertically)
Nominal battery voltage
3.6 V
Nominal battery capacity
2 000 mAh
Operating voltage range
2.0 V to 5.25 V
Idle current consumption
< 180 μA
Peak current consumption
< 250 mA
Operating temperature
-30 to +70 °C
Storage temperature
-30 to +70 °C
Dimensions
130×175×45 mm

Need it adapted?

We designed CHESTER Clime IAQ, so we can change its sensors, firmware, enclosure or brand for your project.
