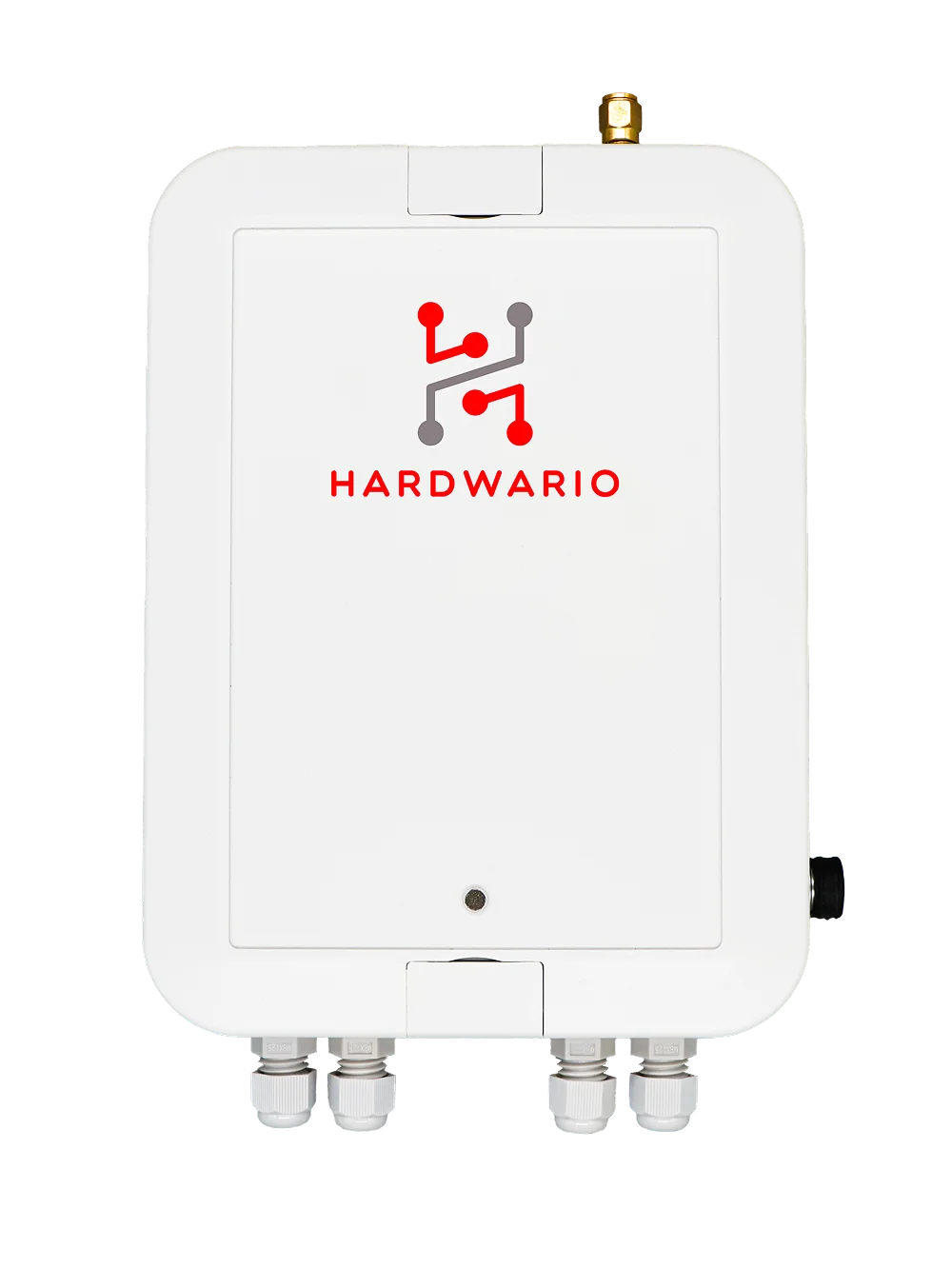

CHESTER Control
Remotely control valves, relays, and actuators from anywhere via cloud. Combine sensor monitoring with automated output control for complete IoT solutions.
Product Overview
Configurable inputs
Supports four configurable digital/analog inputs
Analog input
Analog inputs can be configured for voltage measurement (0-28 V) or current loop measurement (4-20 mA)
Digital input trigger and counter
Two digital NPN/PNP inputs - one for the trigger (switch, button, relay), and the other for the counter
Output control
Offers four output switches for controlling devices powered by an external voltage
Power supply
Operates from a 6-28 VDC external power source for stable performance
Configurable reporting
Optional periodic data acquisition and transmission
Use Cases

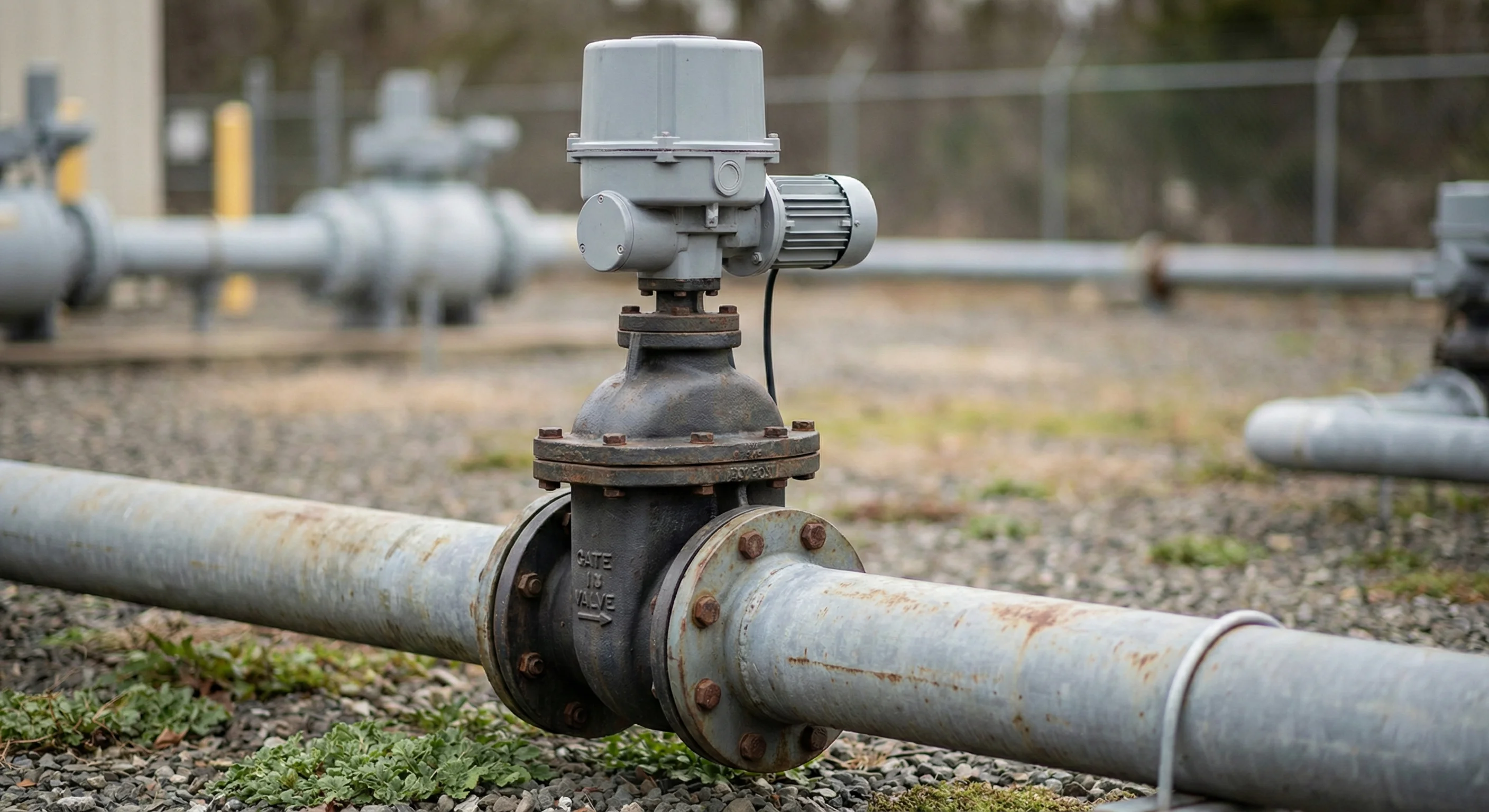

Remote Valve Control
Eliminate manual valve rounds at remote sites. Open and close irrigation, water supply, or gas shutoff valves from your desk - triggered by sensor data or on-demand.

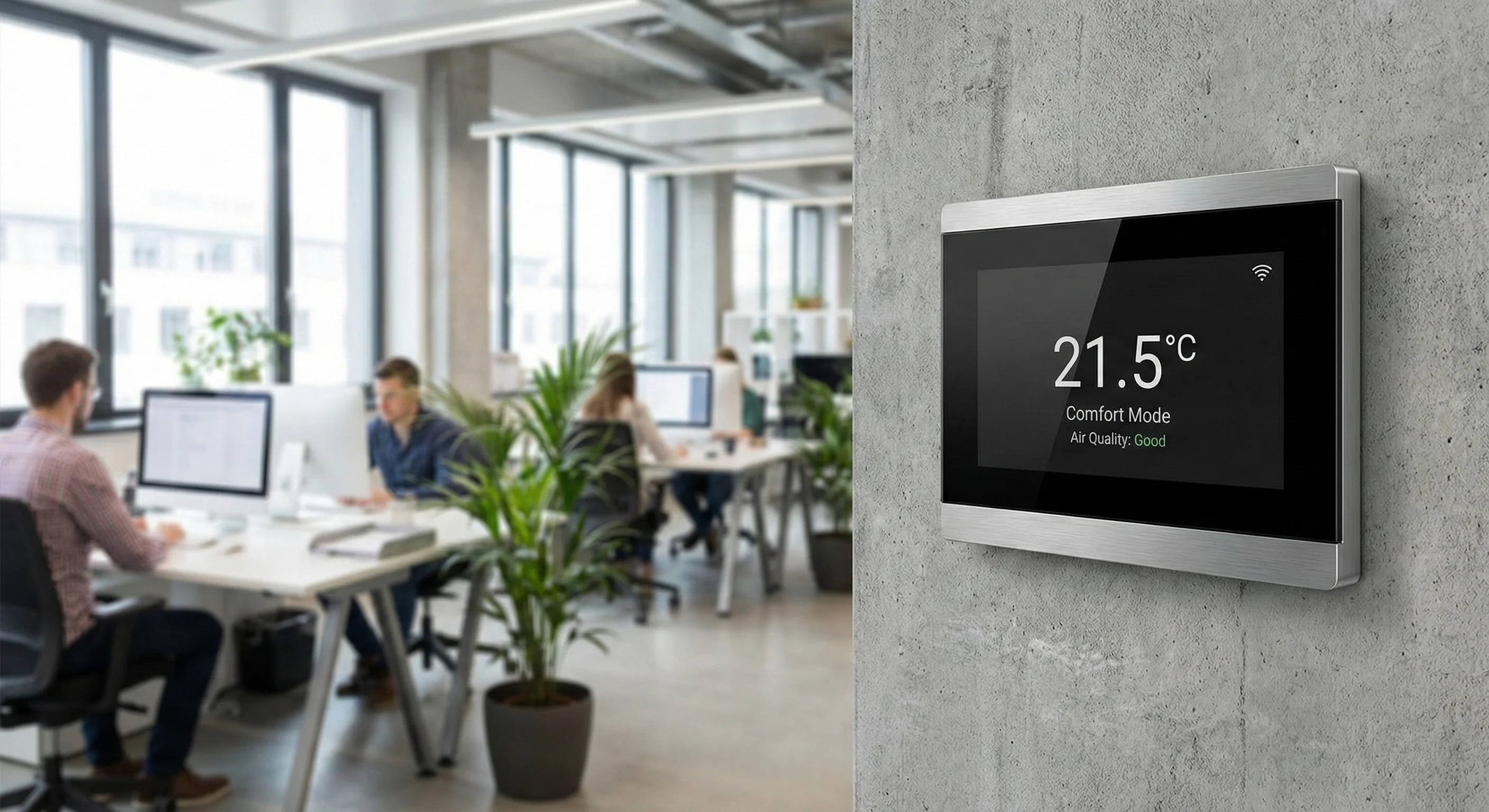

HVAC & Building Automation
Manage heating and ventilation in remote buildings without investing in a full BMS. Cloud-based control of HVAC systems cuts energy waste and service calls.

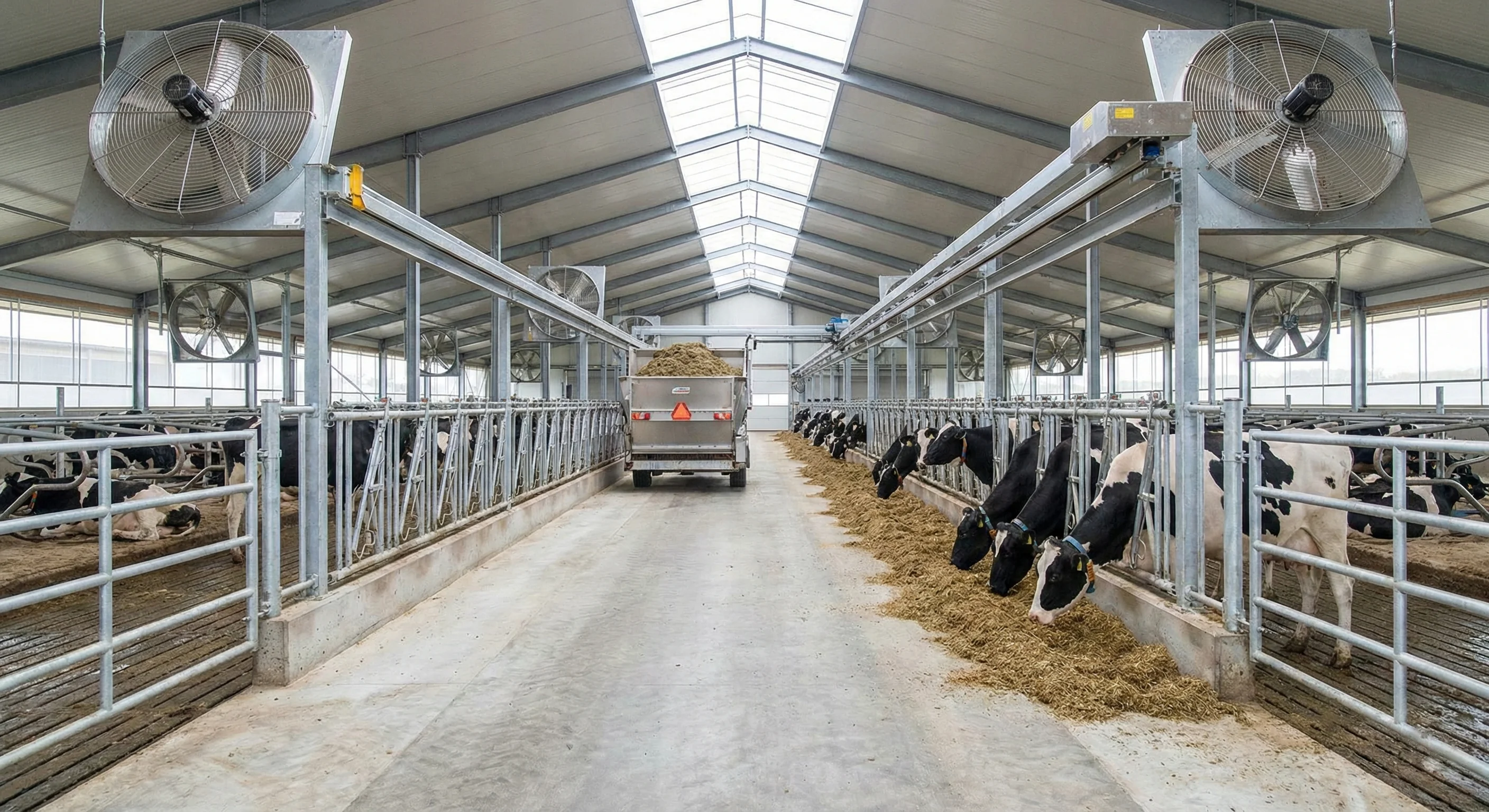

Agricultural Automation
Let sensor data run your farm. Automate irrigation, greenhouse ventilation, and feeding systems based on real conditions - not fixed schedules.

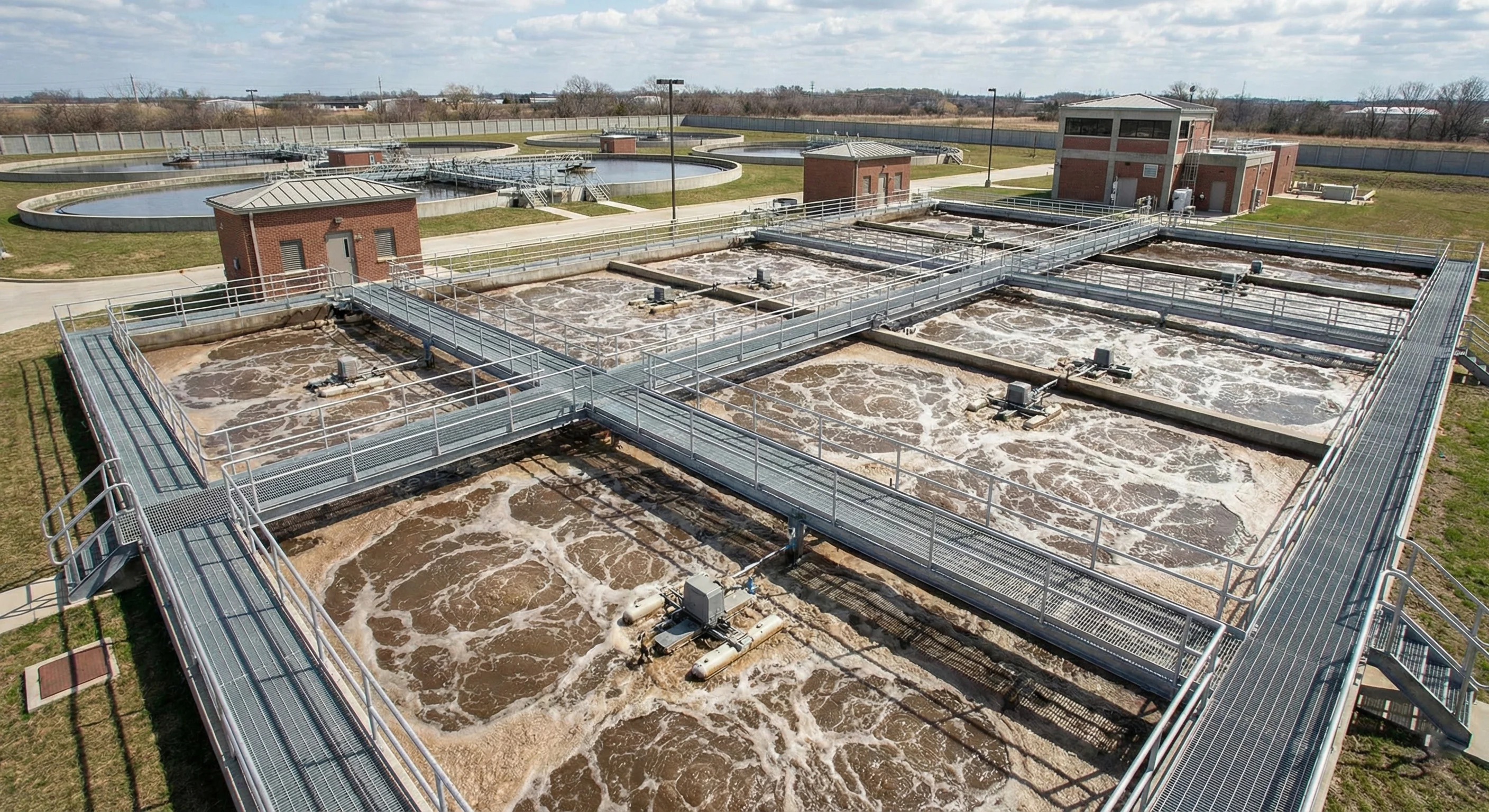

Industrial Process Control
Stop sending technicians to flip switches. Remotely start, stop, and schedule pumps, fans, and motors at distributed sites - cutting response times from hours to seconds.
Remote Valve Control
Eliminate manual valve rounds at remote sites. Open and close irrigation, water supply, or gas shutoff valves from your desk - triggered by sensor data or on-demand.
HVAC & Building Automation
Manage heating and ventilation in remote buildings without investing in a full BMS. Cloud-based control of HVAC systems cuts energy waste and service calls.
Agricultural Automation
Let sensor data run your farm. Automate irrigation, greenhouse ventilation, and feeding systems based on real conditions - not fixed schedules.
Industrial Process Control
Stop sending technicians to flip switches. Remotely start, stop, and schedule pumps, fans, and motors at distributed sites - cutting response times from hours to seconds.
"Automating ventilation based on real sensor data instead of timers cut our energy bill and improved conditions at the same time."
Technical Specifications
- Power options
- Power adapter
- DC power input
- 6-28 V
- Inputs
- Up to four analog/digital inputs
- Outputs
- Up to four output switches
- Storage temperature
- -20 to +60 °C
- Operating temperature
- -20 to +60 °C
- Dimensions
- 130×175×45 mm
- Enclosure protection
- IP67
Deploy in Days, Not Months
CHESTER Control is a complete solution - hardware, connectivity, and cloud included. No multi-vendor integration, no lengthy development cycles.
