Turn your old washing machine into a smart one

Introduction

Raise the IQ of your family washing machine. 🤖 Using the IoT box, programme a notification to let your parents know that the load has been finished.

In this project, you will learn to set up the box so that it recognizes when the washing machine is finished and sends a notification to the mobile. 📱 👈

All you need is the box with the button and the USB dongle. You will be all set with the basic BigClown kit - the Starter Kit.

Download new firmware

  1. If you haven’t done it yet, put together the Starter Kit.
  2. Upload new firmware to the Core Module - bcf-radio-washing-machine-monitor (you will find it among other firmware in the Playground). Thanks to this firmware, the box will be more sensitive to vibrations of the washing machine. 🔃

Our tip: If you don’t know how to download the firmware or what it is, you will find out here.

  1. Pair the Core Module with the USB Dongle. Right after pairing it, you will see that your Core Module changed Alias to washing-machine-detector. 👌
BigClown Playground devices list

Get it started in the Node-RED

  1. In the Playground, click on the Functions tab, where the Node-RED programming desktop is located. 🤖
  2. Start as usual: first, place the MQTT node from the Input section on the desktop.

Double-click on it and copy Topic in the field. With this, the box will know when the washing machine stops shaking:

node/washing-machine-detector:0/washing/finished
Check alias of BigClown kit

Confirm it with the Done button.

  1. Place the Change node from the Functions section next to it.
Add change node to flow
  1. Inside the Change node, set up a message that will be sent to your parents’ mobile after the washing is done. The message should be free of diacritics. Here’s a little inspiration:
    • There’s clean laundry for you.
    • I am finished. Do I get a week holiday now?
    • Done and leave me alone. Your washing machine.
Set message to show

Confirm it with the Done button.

Set up your mobile

  1. It’s time to steal your mom’s or dad’s mobile and set up their own Blynk. If you don’t know how to do it yet, check out the instructions.
  2. Create a new project in Blynk. Now a token has been sent to your email, but don’t do anything with it just yet.
  3. On the Blynk desktop, place the notification.
Add Blynk Notify widget

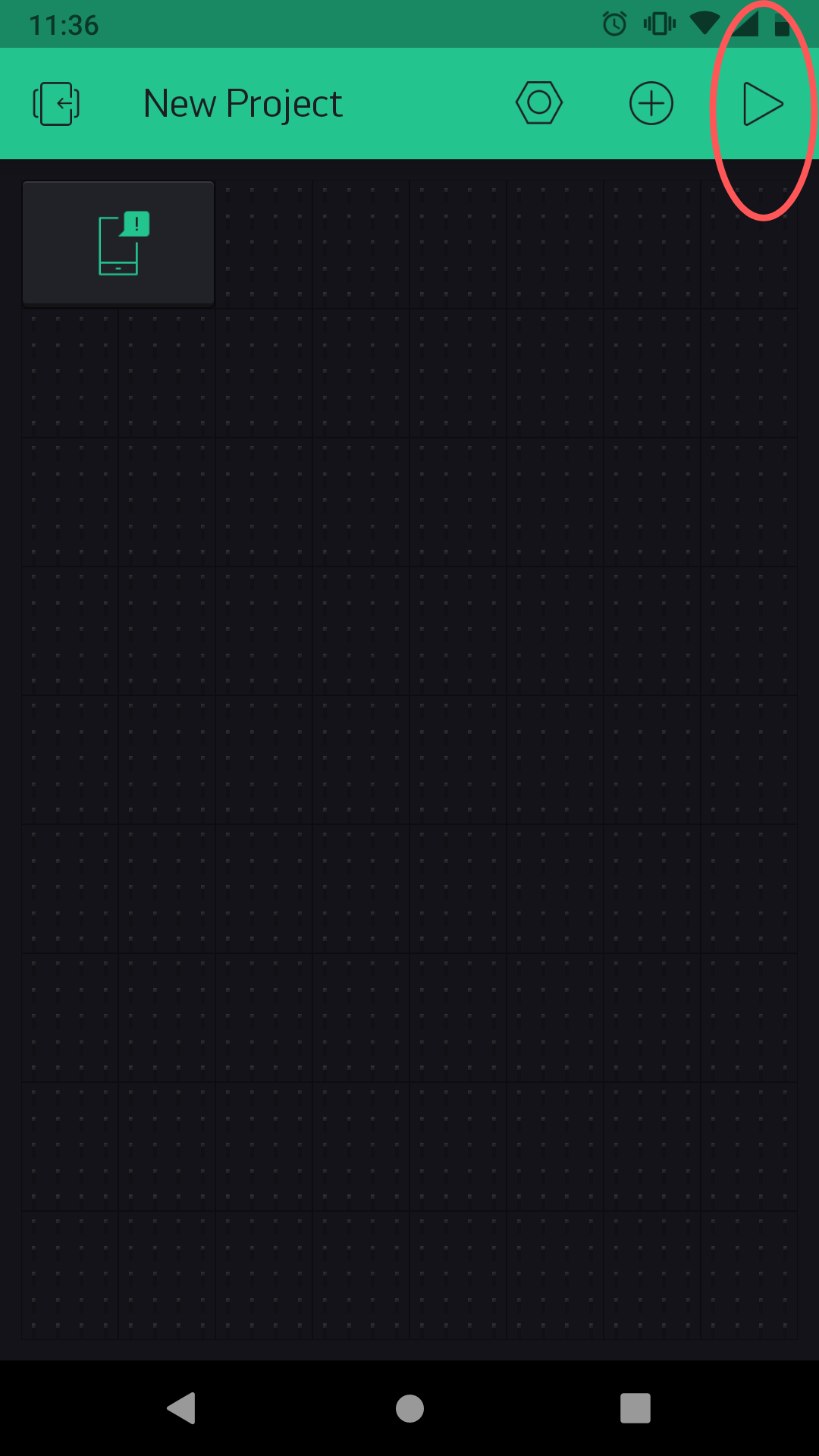

  1. Start the project with the Play button at the top right.
Set Blynk Notify widget

Finish the programming

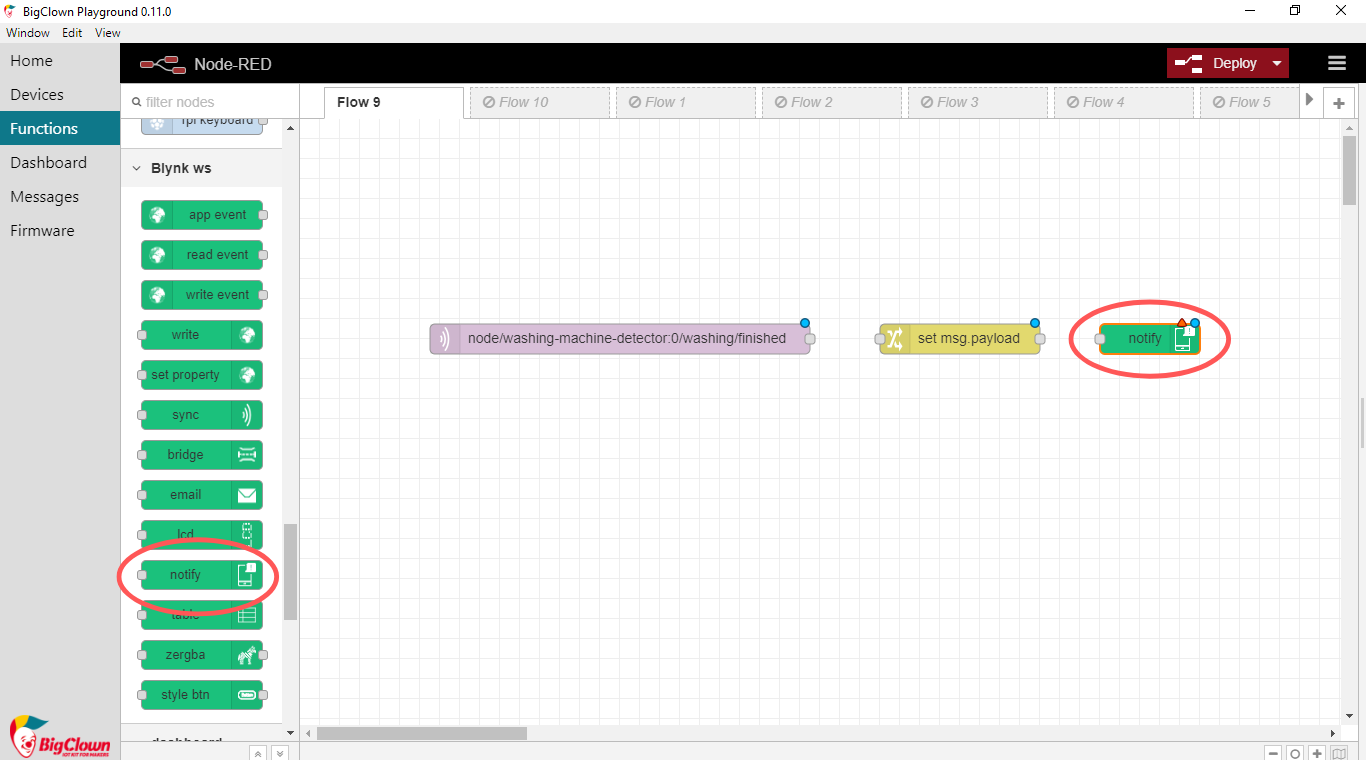

  1. Go back to your computer. Place the last node, Notify from the Blynk ws section, on the Node-RED desktop.
Add Blynk Notify node
  1. Double-click on the node. Then click on the pencil. ✏

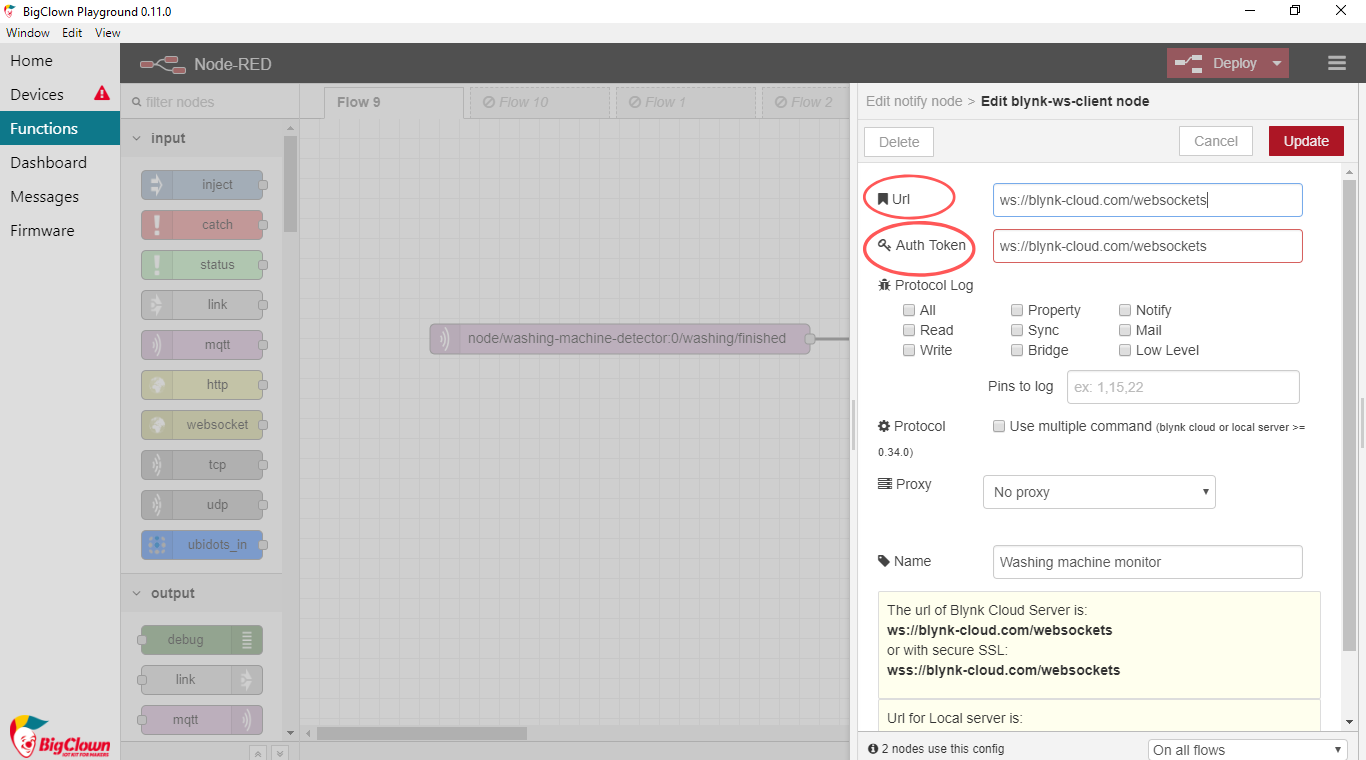

Blynk Connection settings
  1. A window has opened for pairing with Blynk. Set the URL and the Project Token here. As always, you copy the URL from the bottom section of the image and receive the project token to your mailbox after creating a new project in Blynk.
Blynk Connection settings

Our tip: In the Name field, set the name of the project to recognize it better.

Confirm everything with the Add and Done buttons.

  1. All you have to do now is connect and send a command to the space with the red Deploy button on the top right. 👏
Deploy flow in Node-RED

Give it a spin!

  1. Put the box on the washing machine. Stick it with a small piece of tape to prevent it from falling.
  2. The box will recognize when the washing machine finishes, because it will stop shaking. It will send a message to your mom’s or dad’s mobile. Cool, huh? All of a sudden, you are living in a smart household! 🤡
