Make an upgraded dog kennel temperature monitor

Introduction

Do you already have a basic version of the kennel temperature detector? Build an even better one. It will send notifications to your mobile and you will see the temperature in the kennel from anywhere. 🐶

Under this project, you will learn how to set the box to send you a message when the temperature exceeds a preset value. 👌 The box won’t start barking, but it´s still a great project. 🐩

The basic version of this project can be found here: Temperature monitor for your hairy watchman: check the temperature in your dog's kennel.

All you need is the basic HARDWARIO Starter Kit.

Prepare Node-RED

  1. The firmware you need for this project is the familiar bcf-radio-push-button. Have you got it already? What are you waiting for? Pair the box with a Dongle.

Node-RED

  1. In Playground, click on the Function tab and place the same thing on the desktop as in the basic version of the project:
  • one MQTT node from under the Input section uploading Topic
node/push-button:0/thermometer/0:1/temperature
  • and a pointer, that is a Gauge node from under the Dashboard section. It should read from -15 to 40 °C. Name it for better orientation. ✍️

Gauge

Dashboard

Hold onto your hat and let's move on. 🎩

Set up Blynk

  1. First, take your mobile and open Blynk You don’t know what Blynk is or how to use it? Check out our tutorial.

  2. In Blynk, put on everything you need. On the desktop of the new project, first set Notification.

Blynk Step H
  1. Add Gauge, pointer. Click on it and in the settings add the same temperature range as on the computer: ** from −15 to 40 **.

Set the unit: /pin/ °C.

Click on PIN. Set Virtual here and select any number; remember it. The PIN is used to connect to the nodes in Playground.

Make sure to give your graph a name.

Unsure about something? Take a look at the screenshot.

Blynk Gauge
Blynk nastavení teploty

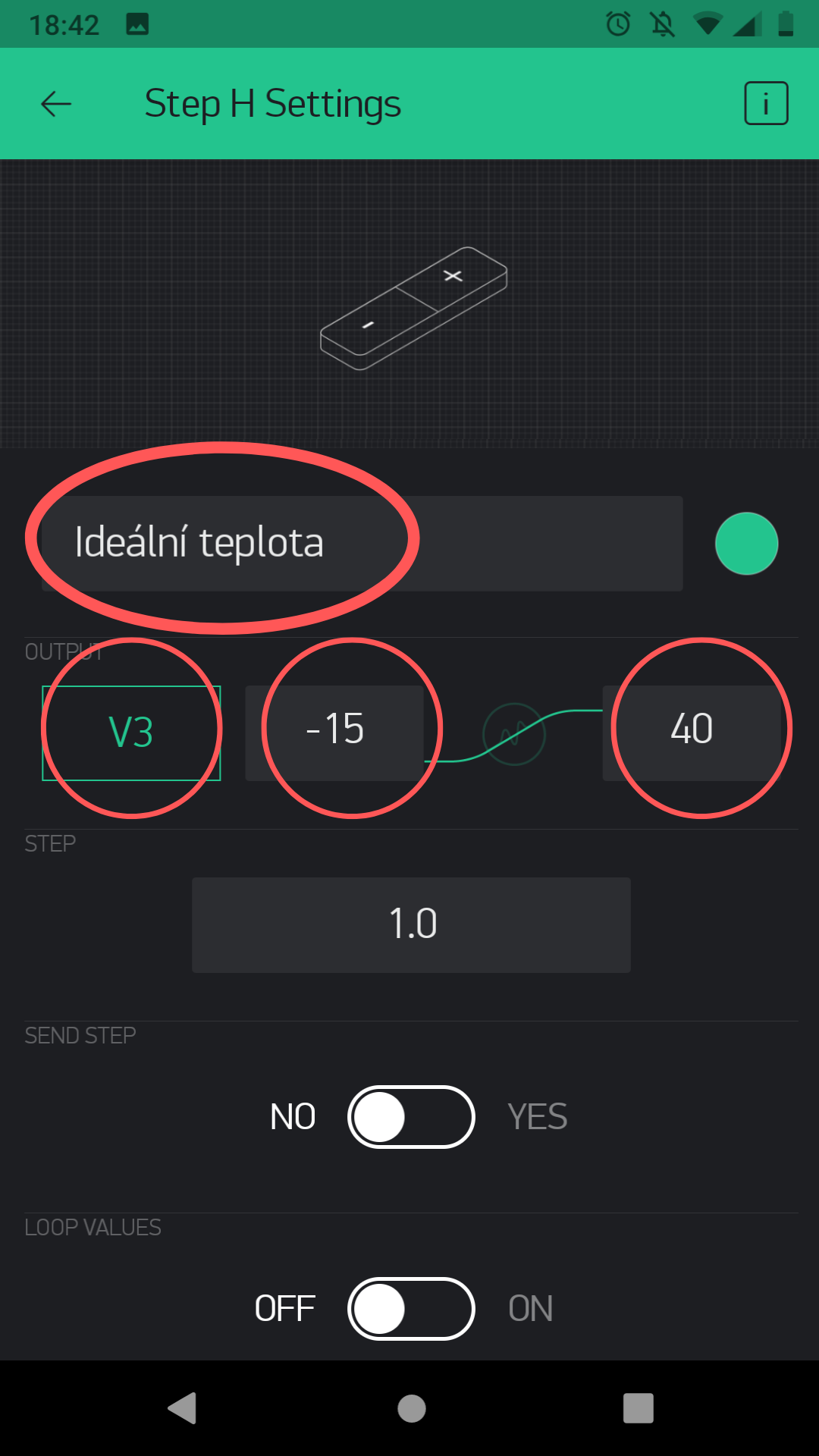

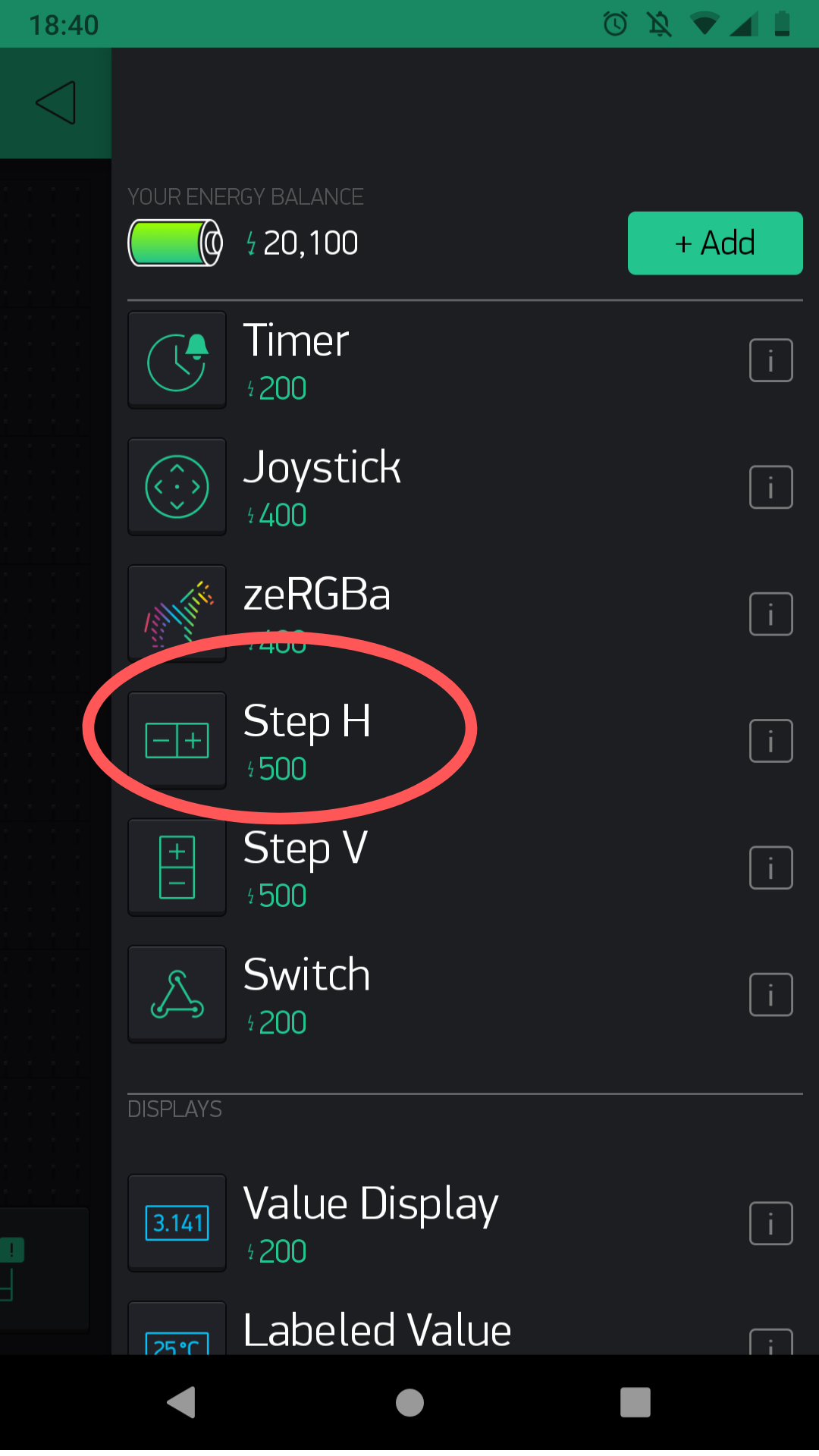

  1. Finally, add Step H. With it you set below how many degrees the temperature in the kennel should not drop. The letter H stands for horizontal, meaning in a lying position. Feel free to also use Step V, where the letter V stands for vertical or upright position. The choice depends on you and you alone.

Inside, set the range from −15 to 40.

Then select PIN. Again it will be Virtual, but this time you have to select a different number.

In the line at the top, give the optimum temperature monitor a name.

Blynk Step H
Blynk nastavení teploty
  1. Name the project in project settings and run the program with the Play button. It won´t do much because you first have to upgrade your Node-RED.

Upgrade in Node-RED

  1. Return to your computer and set up more features in Playground. The first is the mobile notification. You make this work with three nodes.
  • First node: Switch node from under the Function section.

Switch

In the node, set what you see below:

a. Use msg. payload as the selected property;

b. Select the notification to be sent when the temperature is less than or equal to −15 °C. Work with the flow. optimalTemp variable and with the symbol less than/equal to: <=.

flow

  • Second node: Change node from the same section. This affects what message you get on your mobile.

Change

In the node, set what the mobile will tell you when the temperature in the kennel falls below the lowest temperature you set. For example It's too cold in the kennel.

Our tip: Write the message without hooks (háčky) and accent marks (čárky). Unfortunately, Blynk does not understand them.

  • Third node: Notify node from under the Blynk ws section. This provides the connection to the mobile.

Notify

In the node, click on the small pencil symbol.

Pencil

Copy and paste here the URL from the bottom part of the window and the token that you received on your mobile when you set up the project in Blynk. Unsure about something? Take a look at the screenshot.

URL

Our tip: Name the connection in the name line so that you can recognize it later.

  1. What do you think? Does it need something else? You´re right, the Write node from the Blynk ws section. This will ensure that the pointer will work on your mobile.

Write node

In the Connection line, select your current project.

You no longer need to click on the pencil, just set the token and URL once in each project.

In the node, set the PIN to the same one you entered for the pointer on the mobile. Enter it in the node without the initial V.

PIN

Add the flow that monitors the optimum temperature.

  1. The icing on the cake is to follow. This flow consists of four nodes.

The first is the Write Event node from under the Blynk ws section. Watch out, Write Event, not only Write.

Write Event node

This time connect it to the PIN, which you set in Blynk for Step H. PIN

  1. The next one is the Numeric node from under the Dashboard section. Sounds like some comic book villain, doesn't it? But he's your buddy now.

Numeric does the same as Step H in Blynk. It ensures the values are synchronized.

Numeric node

In the node, set the unit of measure (°C), the temperature range (−15 and 40) and the node name.

Temperature setting

  1. Place another Change node next to it.

Change node

  1. In the node, set the minimum temperature value (optimalTemp) to be updated immediately with changes to the Numeric node. Take a look at the screenshot.

Numeric

  1. Below this node, add one more Write node from under the Blynk ws section.

Write node

  1. In this node, fill in the same PIN that you set for the Step H element. Also select the correct project on the Connection line.

This setting will ensure that the set temperature is synchronized back so that you can see the changes in the Dashboard also in Blynk.

Connection

  1. Now you only have to connect it as shown in the screenshot and confirm with the Deploy button. 🙌

Deploy

Ready, steady… go!

  1. Stick the box back to the inner wall of the kennel.
  2. The temperature measured in the kennel is not only shown in Playground in the Dashboard tab

Dashboard

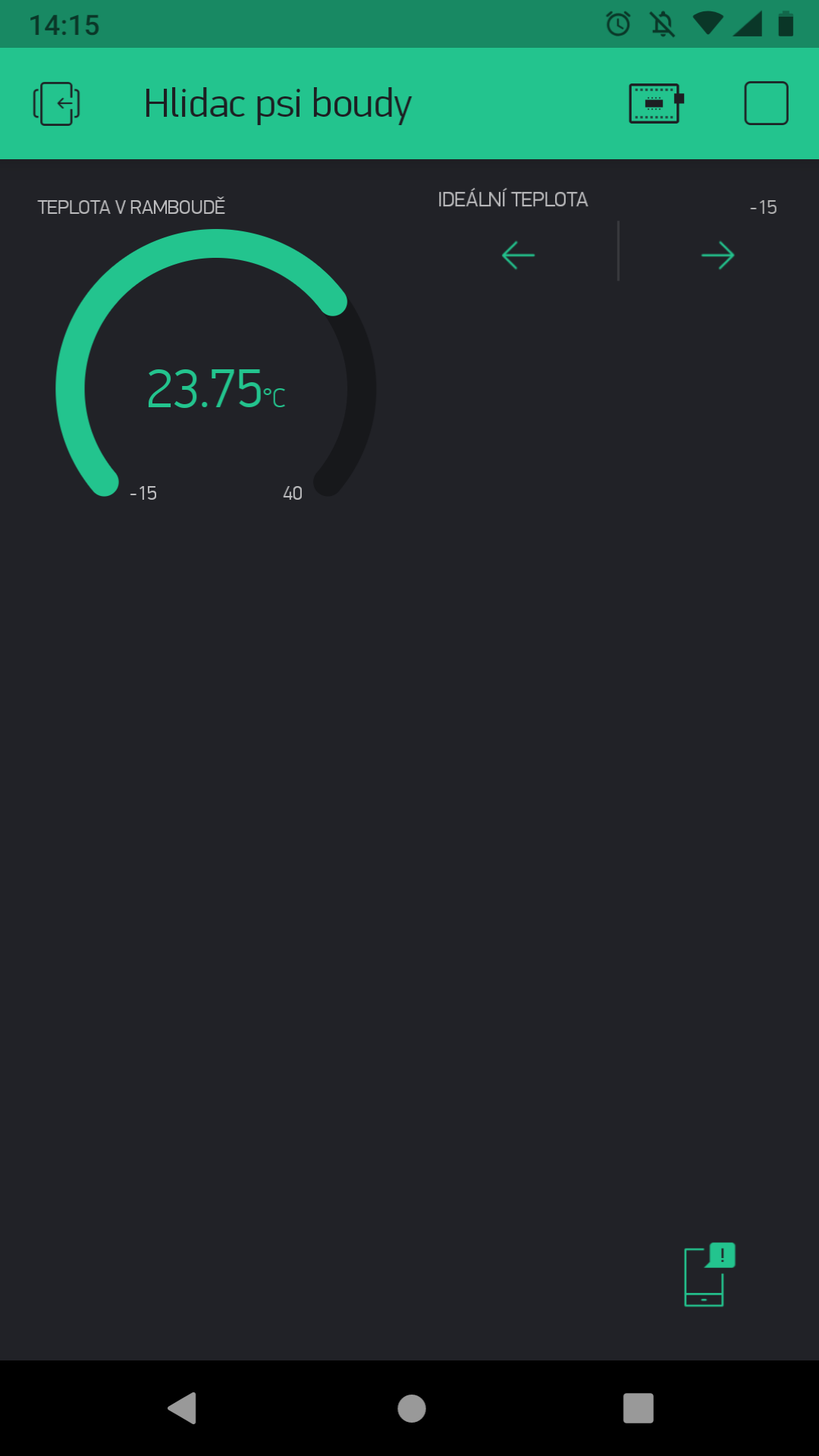

  1. … but also in Blynk. So you can check it anywhere, anytime. 🕵️
Blynk
  1. In addition, you get a notification on your mobile if your dog is too hot or cold. Happy dog = good dog! 🐕
